High-Performance Filtration Solutions for Demanding Applications

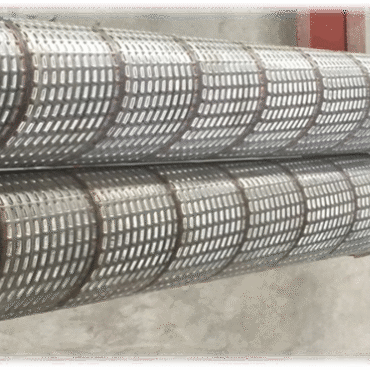

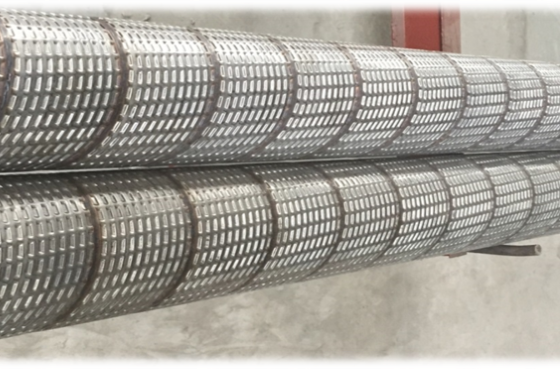

Imex Canada’s Precision Rolled Screens (PRS) are engineered to deliver exceptional filtration performance and durability in oil and gas, mining, water well, and industrial processes. Manufactured in partnership with leading global suppliers, our PRS products ensure reliability, consistency, and optimal flow rates even in the most challenging environments.
Why Choose Imex Canada’s Precision Rolled Screens?
Superior Quality Materials: Constructed using high-grade stainless steel and alloys, our screens provide outstanding corrosion and wear resistance.
Customizable Specifications: Available in a variety of diameters, slot sizes, and lengths to meet your project’s unique needs. Custom options available upon request.
Advanced Manufacturing: Our precision-rolling technology ensures tight tolerances and uniform slot openings, guaranteeing consistent filtration and product integrity.
Industry Expertise: With decades of experience serving oil & gas and industrial sectors worldwide, Imex Canada offers application support and technical guidance to optimize your selection.
Key Features
- Continuous slot design for maximum open area and filtration efficiency
- High collapse strength for deep or high-pressure wells
- Anti-clog surface profile minimizes maintenance
- Robust welding for integrity under dynamic loads
- Compatibility with a wide range of well and process fluids
Applications
Imex Canada Precision Rolled Screens are ideal for:
- Water injection and oil production wells
- Dewatering projects
- Mining slurries and tailings pipelines
- Municipal and industrial water treatment
- Groundwater monitoring and remediation
Technical Specifications
| Size | Base Pipe OD (mm) | Base Pipe Weight (ppf) | PRS Screen OD (mm) | PRS Screen Weight (kg/m) | Filtration Precision (μm) | Open Area (%) |
| 2-7/8" | 73 | 6.4 | 82 | 10.9 | 150~1000 | 1.69%~11.3% |
| 3-1/2" | 88.9 | 9.2 | 98 | 15.5 | 150~1000 | 1.69%~11.3% |
| 4" | 101.6 | 9.5 | 110 | 16.3 | 150~1000 | 1.69%~11.3% |
| 4-1/2" | 114.3 | 11 | 123 | 19.9 | 150~1000 | 1.69%~11.3% |
| 5" | 127 | 15 | 136 | 25.8 | 150~1000 | 1.69%~11.3% |
| 5-1/2" | 139.7 | 17 | 150 | 29.1 | 150~1000 | 1.69%~11.3% |
| 6-5/8" | 168.3 | 24 | 178 | 41.2 | 150~1000 | 1.69%~11.3% |
| 7" | 177.8 | 26 | 188 | 44.5 | 150~1000 | 1.69%~11.3% |
| 8-5/8" | 219.1 | 28 | 232 | 47.8 | 150~1000 | 1.69%~11.3% |
For full specifications or custom requirements, contact our team or fill out our Request for Quote form below.
Advantages of PRS from Imex Canada
- Enhanced well productivity and pump protection
- Extended service life with minimal downtime
- Rapid North American and international shipping
- Technical support from inquiry to installation
Request a Quote or Technical Consultation
Looking for the best solution for your next well or filtration project?
Contact Imex Canada today to discuss your requirements, get technical advice, or request a custom quote.
Call us: +1 403 269 9999
Email: sales@imexcanada.com
Imex Canada: Your Trusted Partner for Filtration & Well Screen Solutions
Traditional welding may cause circumferential crack around the base pipe and might not control the tightness of the jacket.
Precision rolled screen (PRS) uses new lock method to lock the jacket inside the end ring to make it tight, which then allows welding of the ring.
